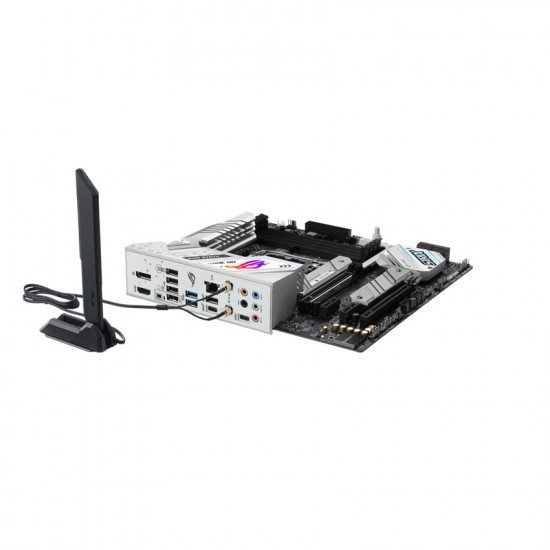

MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5

MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5
MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5
MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5
MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5
MAINBOARD ASUS ROG STRIX B760-G GAMING WIFI DDR5
5.750.000₫
  • Kho hàng: còn hàng
  • Hãng: ASUS
  • Bảo hành: 36 Tháng
3402 views

 Thông số kỹ thuật:

Sản phẩmBo mạch chủ
Tên HãngASUS
ModelROG STRIX B760-G GAMING WIFI
CPU hỗ trợHỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700
ChipsetB760
RAM hỗ trợ4 x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Khe cắm mở rộngIntel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/ for the list of
supported peripherals.
Ổ cứng hỗ trợ
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Cổng kết nối (Internal)Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Cổng kết nối (Back Panel)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Lan
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
WIRELESS/BLUETOOTH  Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between
countries.
Kích cỡ9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
